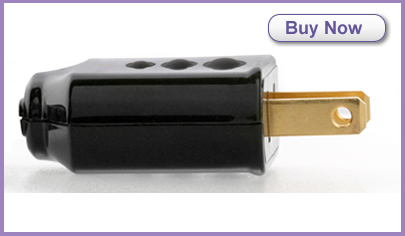

Volt-Star Mini Charger

Volt Eco Mobile Phone Charger The Volt-Star travel charger is the slimmest cell-phone charger on the market today. This thin and lightweight charger does not block adjacent socket receptacles.

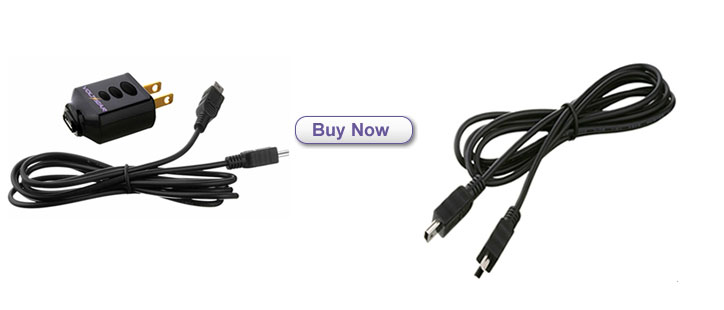

Designed to provide the utmost in convenience, the Volt-Star travel charger offers more features than its larger counterparts. A Mini-USB connector interface allows the changing of cables so a variety of hand held devices can be charged with the Volt-Star charger.

The stylish black soft touch gripping bumps and gold blades provide improved ergonomics and easier plugging and unplugging.

The Volt-Star travel charger is designed to protect your hand held device. Superior grade components were selected for reliability and performance unlike typical chargers.

This charger features heavy-duty surge protection to block power line surges from damaging your device while it is charging. In addition, over voltage protection and over current protection further protect your device from abnormal operating conditions. The Volt-Star travel charger is ROHS compliant and UL listed.

Prices

  • $14.95 - Mini Charger with adapter cable
  • $14.95 – Mini Charger with Apple compatible adapter cable
  • Free Shipping!

Features

  • Charges any 5 volt deviceVolt Mini Charger Volt-Star Mini Charger
  • Heavy–Duty Surge Protection
  • Over Voltage Protection
  • Over Current Protection
  • UL Listed E302070
  • Efficiency Level IV
  • Gold Blades
  • Soft Touch Gripping Bumps

*Cables for most popular brands available

Electrical Specifications

Parameter Symbol Min. Typ Max. Units Conditions
Input
Voltage VIN 100   240 VACrms 2 Wire - No Earth Ground
Frequency fLINE 50   60 Hz
No-Load Power       0.04 Watts 260 VAC Input
Output
Voltage Vout 4.75 5 5.25 VDC Peak Output Power Point
DC Ripple Voltage VRR     150 mVDC Resistive Load Maximum Power
Current IOUT 500 550 650 mADC
Power POUT 2.50 2.75 3.25 Watts TAMB = 22C
Environmental
1.2/50 Surge   2     kV 1.2/5.Oμs Surge, IEC 1000-4-5
100 kHz Ring Surge   2     kV 100kHZ Ring Wave, 500A
Ambient Temperature TAMB   25   °C Free Convection, Sea Level
Conducted EMI CISPR22B/EN55022B, FCC Class B Artificial Hand Connected To Output Return
Safety UL 60950 Class II

Volt Star Eco Charger for Mobile Phones Eco Cell Phone Charger - Buy Now!
